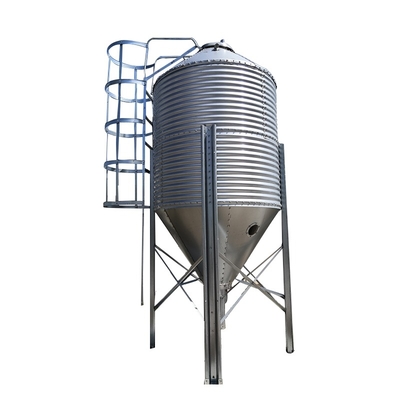

Product name | Hot dip galvanized aquaculture tower |
Silo Materials | Hot dip galvanized |
Silo type | Assembly Storage Silo |
Galvanized Coating | 275 G/m2 |
Diameter | 2200mm-3670mm |
Bottom Type | Hopper Steel Silo |
leg Thickness | 2.5mm/3.0mm |
Silo application | Farm Feed Silo |
Silo specifications | ||||||||||
model | Thickness of upper and lower lamina(MM) | Number of supporting legs, thickness(MM) | The diameter of(mm) | The layer number(layer) | Standard cubi(Cubic meters) | |||||
3T | 1.0MM | 4/2.5MM | 2200 | 1 | 5.6 | |||||
5T | 1.0MM | 4/2.5MM | 2500 | 1 | 7.6 | |||||
10T | 1.0MM | 6/2.5MM | 2750 | 3 | 15.8 | |||||
15T | 1.0MM | 6/2.5MM | 2750 | 3 | 21.6 | |||||
18T | 1.0MM | 6/2.5MM | 3000 | 3 | 25.5 | |||||
20T | 1.2MM | 8/3.0MM | 3260 | 3 | 29.8 | |||||
25T | 1.2MM | 8/3.0MM | 3670 | 3 | 38.5 | |||||
30T | 1.2MM | 8/3.0MM | 3670 | 4 | 48.1 |
