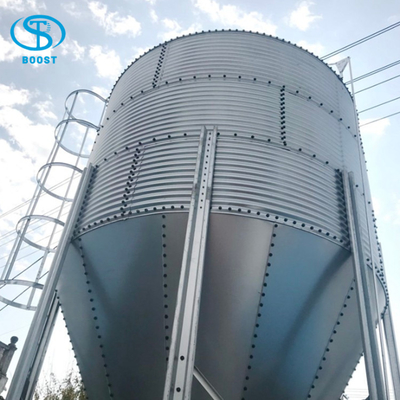

Poultry farm used mini poultry feed cow/pig feed wheat grain storage feed silo for sale

1.0 Sets
MOQ
$1,000.00(1 - 2 Sets) $540.00(>=3 Sets)
preço
Poultry farm used mini poultry feed cow/pig feed wheat grain storage feed silo for sale
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New, New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: ALL
Material: Steel
Dimension(L*W*H): Customized
Weight: Customized
Warranty: 1 Year
Product Name: Poultry Cow/Pig Feed Wheat Grain Storage mini Feed Silo for Sale
Thickness: 1.2mm
Usage: Poultry Feeder
Size: 3T-30T
Package: Assembled or unassembled
Delivery: 7-10 Days
Application: Poultry Farm Used Feed Storage
Local Service Location: None
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Informação básica
Condições de Pagamento e Envio
Packaging Details: Standard Export Packages
Supply Ability: 200 Set/Sets per Month
Descrição de produto
Product Description

Poultry Cow/Pig Feed Wheat Grain Storage mini Feed Silo for Sale


How to choose Poultry feeder silo?

The Poultry Feeder silo has to be used for a long time, and it is placed outside, which has to bear 20-30 tons of feeding weight, Therefore the material must be resistant to high temperature, because low temperature is easier to guarantee feed quality .
It has to withstand hot and high-temperature weather, wind and rain for a long time. Therefore the Poultry Feeder silo must be highly resistant to corrosion and oxidation
Since it need bear the weight of 20-30 tons,Therefore tower material must be Hard and resilient.
Specification
Model
Diameter
Ton
Wall thickness
Height
Legs
Material
4.1m³
Φ1830
2.7T
1.0mm
3.8m
4pcs
275g hot dip galvanizing
6.5m³
Φ1830
4.2T
1.0mm
4.7m
4pcs
275g hot dip galvanizing
8.9m³
Φ1830
5.8T
1.0mm
5.6m
4pcs
275g hot dip galvanizing
11.3m³
Φ1830
7.3T
1.0mm
6.5m
4pcs
275g hot dip galvanizing
11.6m³
Φ2750
7.5T
1.0mm
4.9m
6pcs
275g hot dip galvanizing
17m³
Φ2750
11T
1.0mm
5.8m
6pcs
275g hot dip galvanizing
22.4m³
Φ2750
14T
1.0mm
6.7m
6pcs
275g hot dip galvanizing
27.8m³
Φ2750
18T
1.0mm
7.6m
6pcs
275g hot dip galvanizing
23.5m³
Φ3670
15T
1.2mm
5.8m
8pcs
275g hot dip galvanizing
33m³
Φ3670
21.5T
1.2mm
6.7m
8pcs
275g hot dip galvanizing
42.5m³
Φ3670
27.5T
1.2mm
7.6m
8pcs
275g hot dip galvanizing
52m³
Φ3670
33.5T
1.2mm
8.5m
8pcs
275g hot dip galvanizing
Performance Characteristic
Wallboard for Poultry feeder silo
1.it is made of steel with tension up to 55000,With electroplating coating treatment,275g Zinc coating.which increase the strength and service life.
2.The corrugated steel can ensure accurate and consistent match during installation.
3.The weight and thickness of zinc coating have strict requirements, which meet the requirements of field use with good corrosion resistance, external main material line.

Top Movable Poultry Silo cover system:
1.It adopts a Top movable Silo cover system, which can open, close and block the silo when workers stand on the ground.
2.Limit bolts are used to ensure that the movable Silo cover can be opened freely within 180 degrees.
Edge of Poultry Silo top
1.According to the actual situation, the edge of the Silo top will be designed differently.
2.The edge of the Silo bottom is formed by curling,which can keep the rainwater away from the funnel and the lower discharge pipe area, which can provide all-weather protection without being affected..
40 degree Poultry silo top
40 degree top provides greater strength and capacity.

Poultry Silo side ladder:
1.A strong ladder will be matched for each poultry silo.
2.Each ladder body is molded from a whole piece of galvanized steel plate, which has the advantages of high strength, good stability, and easy and fast installation. 3.There are small concave holes on the rungs of the ladder to prevent slipping.
The hopper at the bottom of the Silo
According to the angle of inclination, the hopper at the bottom of the Silo can be divided into three types: 45 degrees for dry feed conveying, 60 degrees for smooth flowing grain conveying, and 4
Application
Packing & Delivery
Related Products
Company Profile
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment ,Heating equipment ,Poultry farming equipment for poultry,workshop and greenhouse in China

Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.

Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high

Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.

Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.

Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
